10KW off/on-grid working system wind turbine

Short Description:

Name: 10kw wind turbine
Model: FD8-10kw,FD10-10kw
Brief: 10kw off/on-grid working system Steady system,professional technical support  Factory sales directly ce, iso, ccc

Product Detail

Product Tags

Application

Wind turbine is an equipment to convert wind energy into electric power which is charged into storage battery group or interface to utility grid. It can be widely used in rich wind areas.

Now we have 240v-500vdc off grid working system, wind solar hybrid system. It is capable of providing power for lighting, TV, washing machine, refrigerator, small water pump, air conditioner, telecommunication equipment and so on. It can used for the oil field, farm, island, small village, villa…

On grid working system 240v-600vdc: wind turbine output 3 phase AC power, PWM on grid controller convert AC to DC and supply steady DC voltage to grid tie inverter. The power can be use for home appliance, extra power interface to the utility grid.

Structure

10kw wind turbine off grid working system including: wind turbine main body( blades rotor, permanent magnet generator, rotor body, braking part, tail rod, tail vane), stand alone tower or lattice tower, charge controller with dump load, battery group, inverter.

10kw wind turbine on grid working system including: wind turbine main body (blades rotor, permanent magnet generator, rotor body, tail rod, tail vane), stand alone tower or lattice tower, PWM on grid controller with dump load, grid tie inverter.

10kw wind turbine normal spec

HAWT FD8-10KW@200rpm
RATED POWER 10kw
MAX.POWER 15kw
ROTOR DIAMETER 8.0m
BLADE NUMBER 3pcs
CUT IN SPEED 3m/s(6.7mph)
RATED SPEED 12m/s
MAX. WIND SPEED 50m/s
SWEPT AREA 50.24m2
START TORQUE 7n/m
Working wind speed 4-30m/s
VOLTAGE OUTPUT 240v-500vdc,240v-600vdc-110/220/380vac at 50/60hz
TOWER-UP WEIGHT 890kg
GENERATOR Permanent-magnets ;3 phases;AC
BLADES Polyester resin reinforced with fiber glass
CONTROLLER On-grid, off-grid, or hybrid system
INVERTER Single/three phase pure sine wave inverter, grid tie inverter
TOWER-UP WEIGHT 12-30m; stand alone tower, lattice tower
TYPE Up-wind horizontal rotor
SPEED REGULATION Electromagnetic brake +Yawing
STOP METHOD Electromagnetic brake + manual brake
NOISE 44db from 60m with a wind speed of 8m/s(65yd and 17.8mph)
ANNUAL PRODUCTION(min-max) 10000kwh-30000kwh
CO2 SAVED 8750-26250kgs
ANTICORROSION PROTECTION Sealed design + hot aluminum spray + hot galvanization + UV resistant paint
DESIGN According to EN61400-2

for urich wind place , we recommend FD10-10KW wind turbine . The larger blades rotor diameter has lowerrated wind speed . Also the installation blade angle and make the largest angle . This way wind turbine will workbetter in low wind speed condition

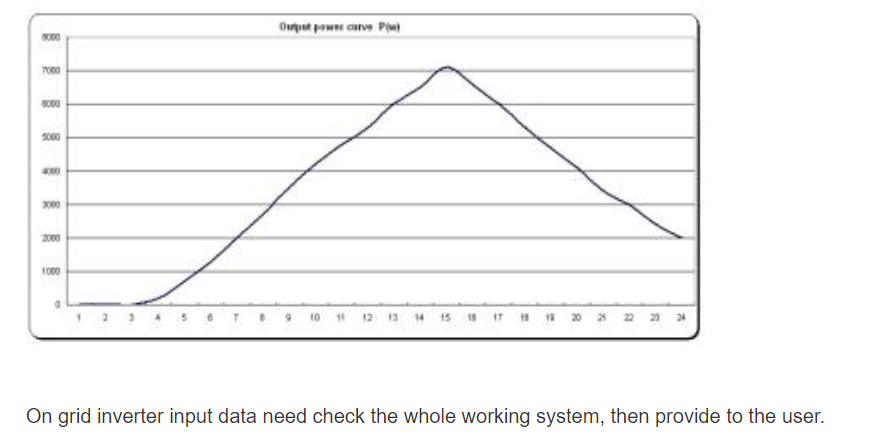

10kw output powegrid inverter input data ( rotatitage , powerdata)

3kw wind turbine

WIne main features

Blades: manufactured according to the structural principle and technology of the propeller. Optimum width TSR high aspect ratio with protective film on the edges, long working life blade type selected through wind tunnel tests high efficiency, low noise blade rotor: hub is cast and shaped; blade rotor and generator with universal connection direct drive connection reliable, durable, smooth running vibration-free generator rotor. NdFeB permanent magnet prefabricated tangential magnetic circuit rotor; high flux density, small volume, good manufacturing process, high performance using SKF, NSK bearings closed drive slip ring, cable will not get tangled speed regulation: yaw. Simple, reliable and safe anti-corrosion treatment. All external parts are anti-corrosion designed against salt, fog, haze and sand storms and can be: boom towers, tilt towers, freestanding towers, hydraulic towers. It can be designed according to your requirements 100w, 500w 1kw, 2kw, 2.5kw automatic brake; 3kw, 5kw, 10kw, 15kw, 20kw, 25kw, 30kw automatic brake system and manual brake system wind turbines are designed to be simple, safe, reliable and maintenance free providing low wind level, rich wind level solutions; wind turbine OEM service.
